Card Type	Video capture board
Chip Set	Unidentified
Maximum Onboard Memory	Unidentified
I/O Options	S-Video connector, composite video connector
Data Bus	32-bit PCI

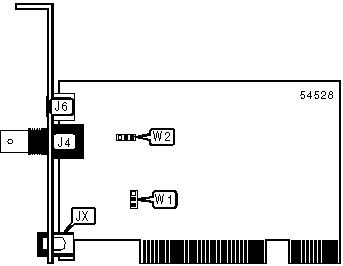

CONNECTIONS
Function	Label	Function	Label
Composite video input	J4	DC power output to CCD camera	JX
S-Video input	J6

OUTPUT VOLTAGE SELECTION
Voltage		W1	W2
»	4.5 volts	Pins 2 & 3 closed	Pins 1 & 2 closed
	6.0 volts	Pins 2 & 3 closed	Pins 2 & 3 closed
	9.0 volts	Pins 2 & 3 closed	Open
	12.0 volts	Pins 1 & 2 closed	Pins 1 & 2 closed
