Category	Video
Video Types Supported	CGA/EGA/Monochrome/VGA/XVGA
Video Processor	TVGA 8900
Highest Resolution Supported	1024 x768
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	1024KB

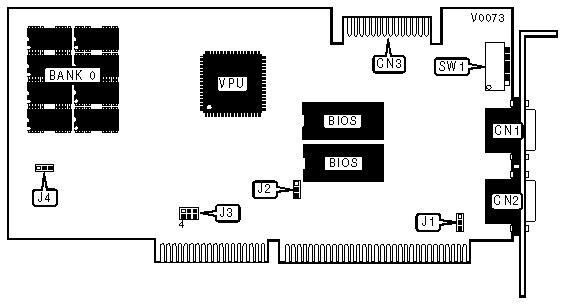

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA feature connector	CN3
9-pin TTL video port	CN2

FACTORY CONFIGURED SETTINGS
Switch	Position
SW1/4	On

MONITOR TYPE SELECTION
Type		SW1/1	SW1/2
»	VGA mode	On	On
	EGA mode	Off	On
	CGA mode	On	Off
	MDA/Hercules mode	Off	Off

SCAN RATE SELECTION
Rate		SW1/3
»	> 48KHz	On
	< 48 - 49KHz	Off

ADDRESS DECODE SELECTION
Setting		SW1/5
»	Fast	Off
	Slow	On

VIDEO INTERRUPT SELECTION
IRQ 2/9		J1
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

BUS DATA PATH SELECTION
BUS		SW1/6
»	16-bit	Off
	8-bit	On

BUS SIZE DETECTION
Setting		J2
»	Autodetect	Pins 2 & 3 closed
	Standard interface	Pins 1 & 2 closed

DRAM CLOCK SELECTION
Setting		J4
»	40mhz (2 DRAM)	Pins 2 & 3 closed
	48mhz (4/8 DRAM)	Pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	J3
256KB	(2) 44256	NONE	Pins 1 & 2, 4 & 5 closed
512KB	(4) 44256	NONE	Pins 1 & 4, 2 & 5 closed
1024KB	(4) 44256	(4) 44256	Pins 2 & 3, 5 & 6 closed
Note: The exact locations of banks 0 and 1 are unidentified.
