Category	Video
Video Types Supported	XVGA
Video Processor	ET4000
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	1024B

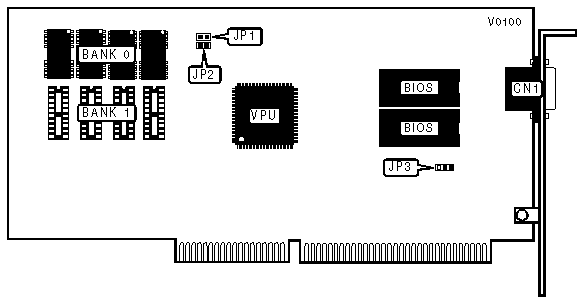

CONNECTIONS
Purpose	Location
15-pin analog video port	CN1

ADDRESS DECODE SELECTION
Setting		JP1
»	Slow	Closed
	Fast	On

VIDEO INTERFACE MODE CONFIGURATION
Mode		JP2
»	Interfaced	Open
	Non-Interfaced	Closed

VIDEO INTERRUPT SELECTION
IRQ	JP3
2/9	Pins 2 & 3 closed
7	Pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
512KB	(4) 44256	None
1024KB	(4) 44256	(4) 44256
