Category	Video
Video Types Supported	XVGA
Video Processor	S3 86C924
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	VRAM
Maximum Onboard Memory	1024KB

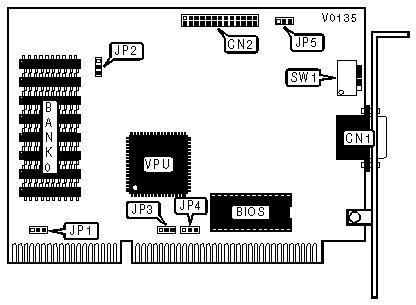

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin video analog port	CN1	VGA feature connector	CN2

MONITOR TYPE CONFIGURATION
Type		Rate	SW1/1	SW1/2
»	Multisync 48KHz	60Hz	On	Off
	Multisync 38KHz	43.5Hz	Off	On
	Multisync 57KHz	72Hz	On	On
	VGA, Super VGA	43.5Hz	Off	Off

TURBO MODE CONFIGURATION
Setting		SW1/3
»	Disabled	Off
	Enabled	On

BIOS TYPE SELECTION
Type		SW1/4
»	8-bit	On
	16-bit	Off

ZERO WAIT STATE SELECTION
Setting		JP3
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

VIDEO INTERRUPT CONFIGURATION
IRQ 2/9		JP4
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

MONITOR ID CONFIGURATION
Mode		JP5
»	Sense	Pins 2 & 3 closed
	MID1	Pins 1 & 2 closed
Note: In the "Sense" mode the WhirlWin/Lite will automatically detect the monitor being used. In the "MID1 mode, the ID information from the monitor will be read by software which supports this feature.

FACTORY CONFIGURED - DO NOT ALTER
Jumper	Position
JP1	Pins 2 & 3 closed
JP2	Pins 1 & 2 closed
