Category	Video
Video Types Supported	XVGA
Video Processor	Cirrus Logic CL-GD5426
Highest Resolution Supported	1280 X 1024
Data Bus Type	VESA LOCAL BUS
Memory Type	DRAM
Maximum Onboard Memory	2048KB

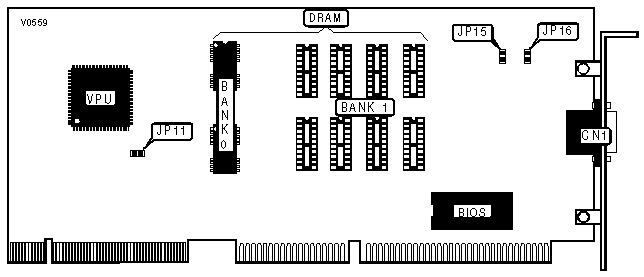

CONNECTIONS
Purpose	Location
15-pin analog video port	CN1

IRQ 9 SELECT
IRQ 9	JP11
Enabled	Closed
Disabled	Open

HIGH PERFORMANCE SELECT
High Performance Mode	JP15	JP16
Enabled	Closed	Closed
Disabled	Open	Open
