Category	Video
Video Types Supported	XVGA
Video Processor	Unidentified
Highest Resolution Supported	1280 x 1024
Data Bus Type	16-bit ISA
Memory Type	Unidentified
Maximum Onboard Memory	Unidentified

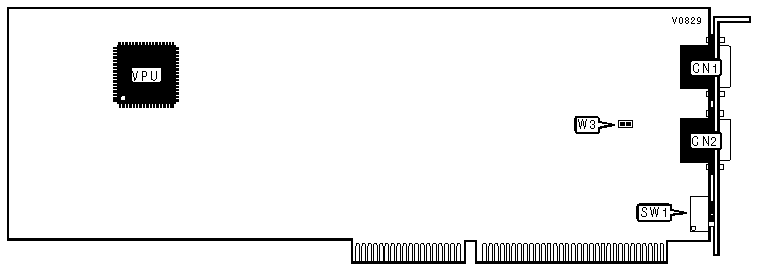

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	9-pin VGA pass-through port	CN2

3/5 WIRE MONOCHROME VIDEO SIGNAL SELECT
Setting		W3
»	5-wire external separate sync video signal	Open
	3-wire internal sync video signal	Closed

VGA PASS-THROUGH
» Setting		SW1/1
»	VGA pass-through or dual monitor mode enabled	Off
»	On-board VGA enabled	On

I/O ADDRESS
» Address		SW1/3	SW1/4
»	230h	Off	Off
»	240h	Off	On
»	330h	On	Off
»	340h	On	On

FACTORY CONFIGURED SETTINGS
Switch	Setting
SW1/2	Off
