Category	Video
Video Types Supported	XVGA
Video Processor	S3, Inc.
Highest Resolution Supported	1280 x 1024
Data Bus Type	VESA local bus
Memory Type	DRAM
Maximum Onboard Memory	2MB

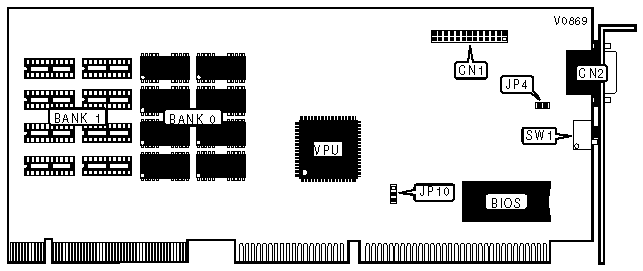

CONNECTIONS
Purpose	Location	Purpose	Location
VESA feature connector	CN1	15-pin analog video port	CN2

INTERRUPT SELECT
IRQ		JP10
»	Disabled	All pins open
	IRQ3	Pins 1 & 2 closed
	IRQ9	Pins 2 & 3 closed

MONITOR SELECT
Resolution/Vertical Frequency/Horizontal Frequency		SW1/1	SW1/2	SW1/3
»	640 x 480 non-interlaced/60Hz/31.5KHz	On	Off	On
	640 x 480 non-interlaced/72Hz/38KHz	Off	Off	On
	800 x 600 non-interlaced/60Hz/38KHz	On	Off	On
	800 x 600 non-interlaced/72Hz/48.5KHz	Off	Off	On
	800 x 600 non-interlaced/56Hz/35.5KHz	Off	On	Off
	1024 x 768 interlaced/43.5Hz/35.5KHz	On	On	Off
	1024 x 768 non-interlaced/60Hz/48.5KHz	On	Off	Off
	1024 x 768 non-interlaced/70Hz/57KHz	Off	Off	Off
	1280 x 1024 interlaced/43Hz/46KHz	On	On	Off
	1280 x 1024 non-interlaced/64Hz/65KHz	Off	Off	Off

DRAM CONFIGURATION
Size		JP4	Bank 0	Bank 1
»	1MB	Open	(8) 256K x 4	None
	2MB	Closed	(8) 256K x 4	(8) 256K x 4
