Category	Video
Video Types Supported	XVGA
Video Processor	Chips & Technology
Highest Resolution Supported	1280 x 1024
Data Bus Type	16-bit ISA
Memory Type	VRAM
Maximum Onboard Memory	2MB

CONNECTIONS
Purpose	Location

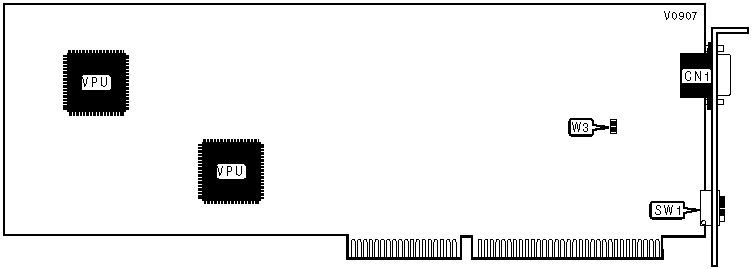

15-pin analog video port	CN1

3/5 WIRE MONOCHROME VIDEO SIGNAL SELECT
Setting		W3
»	3-wire internal sync video signal	Closed
	5-wire external separate sync signal	Open

BASE I/O ADDRESS
Address		SW1/3	SW1/4
»	330h	On	Off
	230h	Off	Off
	240h	Off	On
	340h	On	On

MONITOR MODE CONNECTIONS
Mode	SW1/1
Dual monitor	Off
Single monitor on-board VGA	On

FACTORY CONFIGURED - DO NOT ALTER
Switch	Position
SW1/2	Off
