Category	Video
Video Types Supported	XVGA
Video Processor	CL-GD5426
Highest Resolution Supported	1280 x 1024
Data Bus Type	32-bit VESA Local Bus
Memory Type	DRAM
Maximum Onboard Memory	2MB

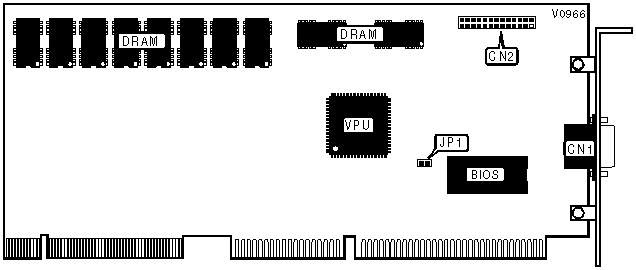

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA feature connector	CN2

ZERO WAIT-STATE CONFIGURATION
Setting	JP1
Zero wait-state	Closed
Non-Zero wait-state	Open
