Category

Video

Video Types Supported

XVGA

Video Processor

Trident 9440AGI

Highest Resolution Supported

1280 x 1024

Data Bus Type

32-bit VESA Local Bus

Memory Type

DRAM

Maximum Onboard Memory

2MB

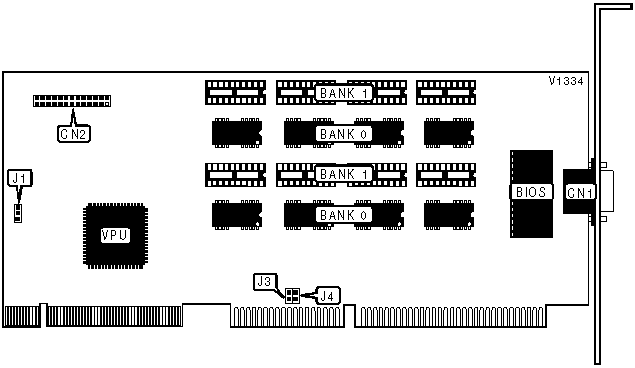

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VGA feature connector

CN2

VL-BUS TIMING SELECTION

Timing

J1

Alternate

Pins 1 & 2 closed

Standard

Pins 2 & 3 closed

Note: The exact location of Pin 1 is unidentified.

VL-BUS CPU SPEED SELECTION

Speed

J3

£ 33MHz

Open

>33MHz

Closed

MONITOR SCAN RATE SELECTION

Rate

J4

»

<48.7KHz

Closed

48.7KHz

Open

DRAM CONFIGURATION

Memory

Bank 0

Bank 1

1MB

(8) 256K x 4

NONE

2MB

(8) 256K x 4

(8) 256K x 4
