Card Type

Video

Chip Set

Trident

Maximum Onboard Memory

4MB RAM

Data Bus

32-bit VESA Local Bus

Video Types Supported

XVGA

Highest Resolution Supported

1280 x 1024

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

Feature connector

CN2

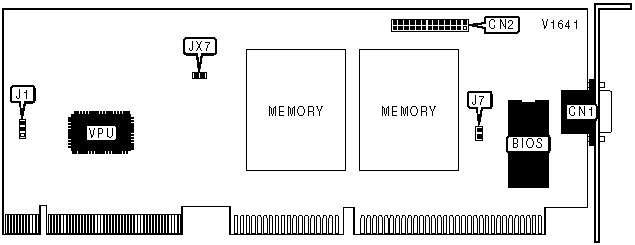

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Scan rate <48.7Khz

J7

Closed

Scan rate ³ 48.7Khz

J7

Open

VL BUS SPEED SELECTION

Setting

J1

JX7

Bus speed £ 33Mhz

Pins 1 & 2 closed

Open

Bus speed > 33Mhz

Pins 2 & 3 closed

Closed

RAM CONFIGURATION

Note: The exact memory configuration is unidentified.
