Card Type	TV card
Video Chip Set	Philips
Chip Set	Aurora Vision
Highest Resolution Supported	800 x 600
Maximum Video Memory	N/A
Data Bus	16-bit ISA
Video Types Supported	XVGA

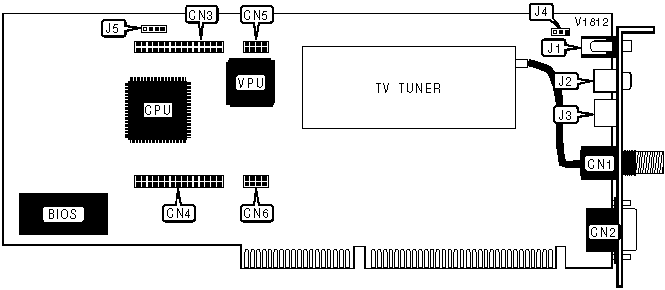

CONNECTIONS
Function	Label	Function	Label
TV Tuner	CN1	Audio out	J1
VGA in/out	CN2	Composite video in	J2

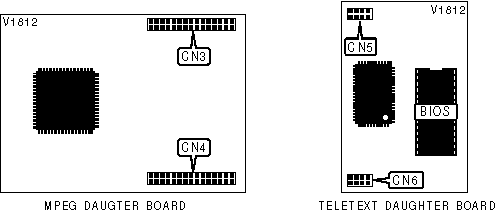

MPEG daughter board connector	CN3	S-video	J3
MPEG daughter board connector	CN4	Sensor connector	J4
Teletext daughter board connector	CN5	Internal audio line out	J5
Teletext daughter board connector	CN6
