Card Type	Video
Video Processor	C-Cube
Maximum Onboard Memory	Unidentified
I/O Options	Composite video in (2), S-VHS in
Data Bus	SBus
Video Types Supported	Sun
Highest Resolution Supported	1152 x 900

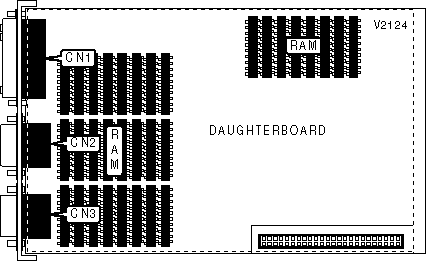

CONNECTIONS
Function	Label	Function	Label
Sun video out	CN1	S-VHS or composite video in	CN3
Composite video in	CN2
Note: CN3 is attached to the XVideo+ daughterboard and is not located on the XVideo. Standard video in connectors are provided on included adapter cables.
