PARADISE SYSTEMS, INC.
MODULAR GRAPHICS CARD (VER. 4.0)
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Highest Resolution Supported |
640 x 200 |
|
Maximum Video Memory |
16KB VRAM (location unidentified) |
|
Data Bus |
8-bit ISA |
|
Video Types Supported |
CGA |
|

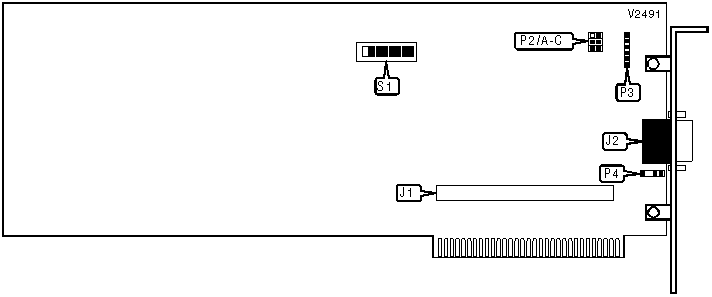

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Module connector |
J1 |
Light pen connector |
P3 |
|
9-pin analog video port |
J2 |
RF connector |
P4 |
|
DISPLAY TYPE CONFIGURATION | ||||
|
Type |
P2/A |
P2/B |
P2/C | |
| » |
Monochrome |
Open |
Open |
Closed |
|
Color |
Open |
Closed |
Open | |
|
Composite |
Closed |
Open |
Open | |
|
DISPLAY TYPE SELECTION | |||||
|
Type |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
|
IBM |
Off |
Off |
Off |
Off |
Off |
|
Princeton MAX-12 |
On |
Off |
On |
Off |
Off |
|
Roland MB-122 series |
Off |
On |
Off |
On |
Off |
|
Roland MB-142 |
Off |
Off |
On |
On |
Off |
|
Leading Edge |
On |
Off |
Off |
On |
On |
|
Grandwood Monochrome |
Off |
Off |
Off |
Off |
Off |
|
AMDEK 310A |
Off |
Off |
On |
On |
Off |
|
ITT Monochrome |
Off |
On |
On |
On |
On |
|
MISCELLANEOUS TECHNICAL NOTES |
|
Note: The purpose of SW1/6 through SW1/8 is unidentified. |
