Card Type	Video card
Video Chip Set	Cirrus Logic
Maximum Video Memory	1MB
Video Types Supported	VGA
Highest Resolution Supported	1024 x 768
Data Bus	16-bit ISA

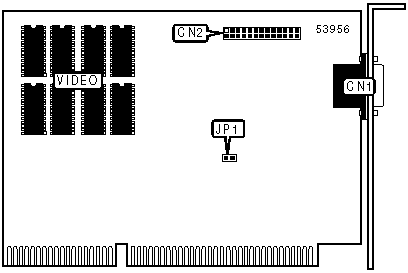

CONNECTIONS
Function	Label	Function	Label
15-pin video analog video port	CN1	Feature connector	CN2

VIDEO MEMORY CONFIGURATION

Note: 1MB video memory is factory installed and is not configurable.

WAIT STATE SELECTION
Wait state	JP1
0	Open
1	Closed
