Card Type	Video card
Video Chip Set	IGS
Maximum Video Memory	2MB DRAM
Video Types Supported	VGA, XVGA
Highest Resolution Supported	1600 x 1200
Data Bus	32-bit PCI

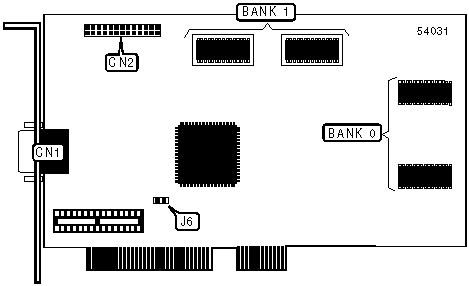

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Feature connector (VGA)	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	IRQ 9 disabled	J6	Open
	IRQ 9 enabled	J6	Closed

DRAM CONFIGURATION
Size		Bank 0	Bank 1
»	1 MB	(2) 512 KB	None
	2 MB	(2) 512 KB	(2) 512 KB
