Card Type	Video capture card
Video Chip Set	Unidentified
Highest Resolution Supported	Unidentified
Data Bus	32-bit PCI

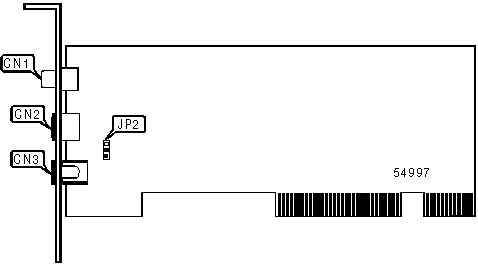

CONNECTIONS
Function	Label	Function	Label
CVBS video in	CN1	DC power	CN3
S-Video in	CN2

USER CONFIGURABLE SETTINGS
Function		JP2
»	+5V DC power selection	Pins 1 & 2 closed
	+12V DC power selection	Pins 2 & 3 closed
