Card Type	Video capture board
Video Chip Set	Unidentified
Maximum Video Memory	8MB SDRAM
Video Types Supported	Monochrome, CGA, EGA, VGA, XVGA
Highest Resolution Supported	1600 x 1200
Data Bus	64-bit PCI

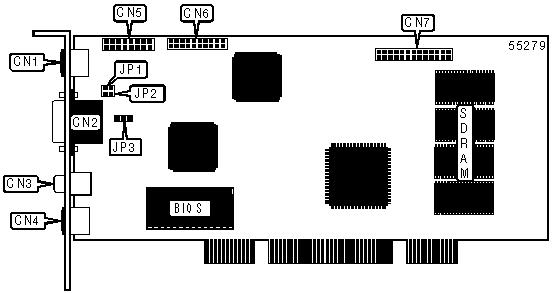

CONNECTIONS
Function	Label	Function	Label
S-video/audio cable connector	CN1	DTV-camera	CN5
VGA connector	CN2	Tuner connector	CN6
Composite video out	CN3	Feature connector	CN7
S-video out	CN4

USER CONFIGURABLE SETTINGS
Function	Label	Position
NTSC	JP3	Pins 1 & 2 closed
PAL	JP3	Pins 2 & 3 closed

DDC SELECTION
Function	JP1	JP2
DDC enabled	Closed	Closed
DDC disabled	Open	Open
