Category	Video
Video Types Supported	XVGA
Video Processor	Weitek
Highest Resolution Supported	1280 x 1024
Data Bus Type	VESA local bus
Memory Type	VRAM
Maximum Onboard Memory	2MB

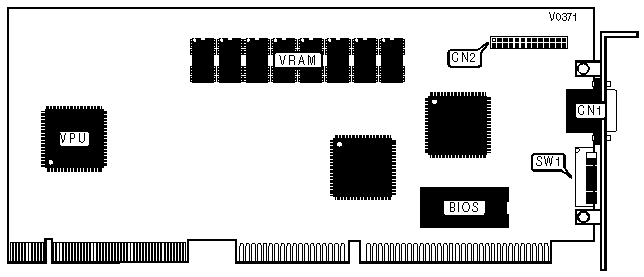

CONNECTIONS
Purpose	Location	Purpose	Location
15 pin analog video port	CN1	VESA Feature connector	CN2

BUS WIDTH SELECT
Bus Width		SW1/1
»	8-bit	On
	16-bit	Off
Note:If switch 1 is placed in the Off position, then switch 3 must be on. If switch 1 is on, then switch 3 must be in the Off position.

VIDEO BIOS WIDTH CONFIGURATION
Setting		SW1/2
»	8 bit access	Off
	16-bit access	On

ZERO WAIT STATE SELECT
Setting		SW1/4
»	Zero Wait State disabled	Off
	Zero Wait State enabled	On

VIDEO INTERRUPT SELECT
IRQ9		SW1/5
»	Enabled	On
	Disabled	Off

HIGH MEMORY BASE ADDRESS CONFIGURATION
Address		SW1/6	SW1/7
»	C0000000h	On	On
	D0000000h	On	Off
	E0000000h	Off	On
	F0000000h	Off	Off

FACTORY CONFIGURED SETTINGS
Switch	Setting
SW1/8	N/A
Note:This switch is reserved for future use.
