Category	Video
Video Types Supported	CGA, VGA, XVGA
Video Processor	Unidentified
Highest Resolution Supported	800 x 600
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	512KB

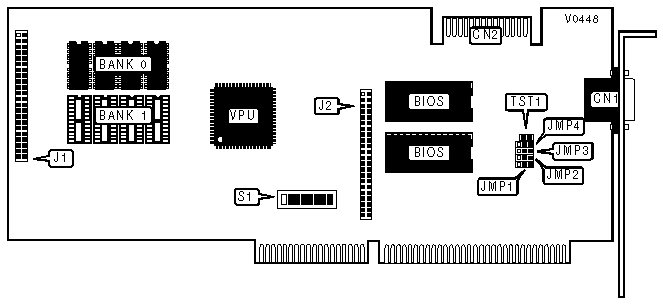

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VESA Feature connector	CN2
Note: 44-pin connectors J1 and J2 are unidentified.

FACTORY CONFIGURED SETTINGS
Jumper	Setting
S1/4	Off
JMP2	Pins 1 & 2 closed
JMP3	Pins 1 & 2 closed
JMP4	Pins 1 & 2 closed
TST1	Open

VERTICAL DISPLAY END INTERRUPT
Setting		JMP1
»	Disabled	Pins 1 & 2 closed
	Enabled	Pins 2 & 3 open

CGA CONFIGURATION
Function		Location	Setting
»	CGA enabled	S1/5	On
	CGA disabled	S1/5	Off

XVGA CONFIGURATION
Function		Location	Setting
»	XVGA enabled	S1/8	Off
	XVGA disabled	S1/8	On

ROM SELECTION
Setting		S1/6
»	16-bit ROM access	On
	8-bit ROM access	Off

RAM SELECTION
Setting		S1/7
»	16-bit RAM access	On
	8-bit RAM access	Off

VIDEO MEMORY CONFIGURATION
Size		Bank 0	Bank 1
»	256KB	(4) 64K x 8	NONE
	512KB	(4) 64K x 8	(4) 64K x 8

MISCELLANEOUS TECHNICAL NOTES

S1/1, S1/2, and S1/3 are all set to Off and used to select the Acer 7004, 7013, and 7015 monitors.
