Category	Video
Video Types Supported	VGA
Video Processor	82C451
Highest Resolution Supported	640 x 480
Data Bus Type	16-bit ISA
Memory Type	VRAM
Maximum Onboard Memory	Unidentified

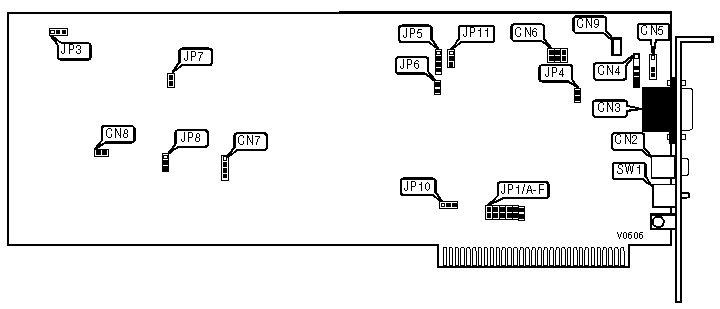

CONNECTIONS
Purpose	Location	Purpose	Location
RCA Jack connector	CN2	External Sync Connector	CN6
9-pin IBM Mono/RGB connector	CN3	Not Used	CN7
Light pen Connector	CN4	Not Used	CN8
RF Modulator Connector	CN5	Composite signal intensity regulator	CN9

MONITOR TYPE CONFIGURATION
Reset Monitor	Reset Adapter	Second Monitor	Second Adapter	SW1	JP7	JP1/A
Standard IBM PC	Graphics Master	IBM mono	IBM mono	Down	Open	Closed
Standard IBM PC	Graphics Master	Mono	Mono	Up	Closed	Closed
Standard	IBM color	IBM mono	Graphics Master	Up	Closed	Open
IBM mono	IBM mono	Standard	Graphics Master	Down	Open	Closed
Standard	IBM color	Any	Graphics Master	Up	Closed	Open

MONITOR TYPE CONFIGURATION (CONTINUED)
Reset Monitor	Reset Adapter	Second Monitor	Second Adapter	JP1/B	JP1/C	JP1/D
Standard IBM PC	Graphics Master	IBM mono	IBM mono	Closed	Closed	Open
Standard IBM PC	Graphics Master	Mono	Mono	Closed	Closed	Open
Standard	IBM color	IBM mono	Graphics Master	Closed	Closed	Open
IBM mono	IBM mono	Standard	Graphics Master	Open	Closed	Open
Standard	IBM color	Any	Graphics Master	Open	Closed	Open

MONITOR TYPE CONFIGURATION (CONTINUED)
Reset Monitor	Reset Adapter	Second Monitor	Second Adapter	JP1/E	JP1/F
Standard IBM PC	Graphics Master	IBM mono	IBM mono	Open	Open
Standard IBM PC	Graphics Master	Mono	Mono	Open	Open
Standard	IBM color	IBM mono	Graphics Master	Open	Open
IBM mono	IBM mono	Standard	Graphics Master	Open	Open
Standard	IBM color	Any	Graphics Master	Open	Open

FACTORY CONFIGURED SETTINGS
Jumper	Setting
JP3	Do not modify
JP4	Do not modify
JP5	Pins 1 & 2Closed
JP8	Open
JP10	Do not modify
JP11	Do not modify

HARDWARE COLOR BURST
Setting	JP6
Hardware color burst enabled	Open
Hardware color burst disabled (Standard Monitor)	Closed
