TECHMEDIA COMPUTER SYSTEMS CORPORATION
MOTION MEDIA (MPEG POWER)
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
C - Cube CL450 |
|
Highest Resolution Supported |
Unidentified |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
1MB (Exact location of memory is unidentified) |
|

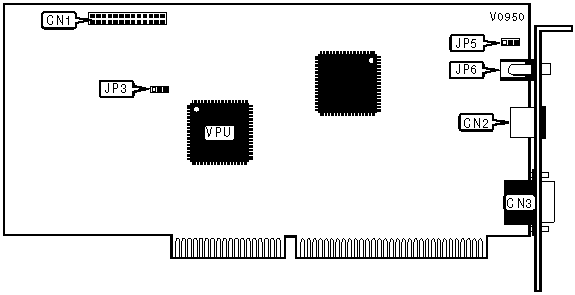

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
VGA feature connector |
CN1 |
Stereo audio output |
JP5 |
|
Video loopback connector |
CN2 |
Audio out |
JP6 |
|
15-pin analog video port |
CN3 |
|
|
|
BASE I/O ADDRESS SELECTION |
||
|
Address |
JP3 |
|
|
» |
B28h |
Pins 2 & 3 closed |
|
|
B18h |
Pins 1 & 2 closed |
