SIIG, INC.
SUPER VGA MASTER ISA
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Siig,Inc. |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
1MB |
|

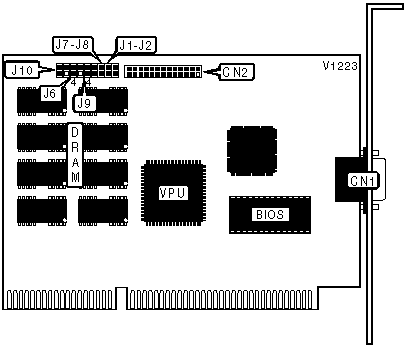

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VGA feature connector |
CN2 |
|
FIRST STAGE ZERO-WAIT STATE CONFIGURATION |
||
|
Setting |
J2 |
|
|
» |
Enabled |
Closed |
|
|
Disabled |
Open |
|
SECOND STAGE ZERO-WAIT STATE CONFIGURATION |
||
|
Setting |
J1 |
|
|
» |
Enabled |
Open |
|
|
Disabled |
Closed |
|
SCAN RATE CONFIGURATION |
||
|
Rate |
J7 |
|
|
» |
< 48.7 KHz |
Closed |
|
|
³ 48.7 KHz |
Open |
|
BIOS AUTODETECT CONFIGURATION |
||
|
Setting |
J8 |
|
|
» |
Enabled |
Closed |
|
|
Disabled |
Open |
|
ISA BUS SLOT SELECTION |
||||
|
Bus |
J6 |
J9 |
J10 |
|
|
» |
16-bit |
Open |
Open |
Closed |
|
|
8-bit |
Pins 1 & 2, 3 & 4 closed |
Pins 1 & 2, 3 & 4 closed |
Open |
