STB SYSTEMS, INC.

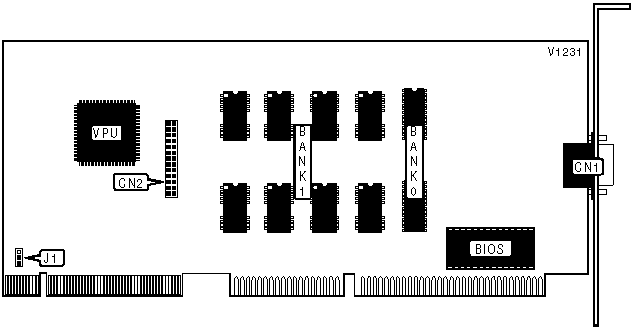

HORIZON-VL VER. 1
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
32-bit VESA Local Bus |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
1MB |
|
CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VGA feature connector |
CN2 |
|
INTERRUPT CONFIGURATION |
||
|
IRQ 2/9 |
J1 |
|
|
» |
Disabled |
Pins 2 & 3 closed |
|
|
Enabled |
Pins 1 & 2 closed |
|
DRAM CONFIGURATION |
||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(2) 256K x 16 |
NONE |
|
1MB |
NONE |
(8) 256K x 4 |
|
Note: Banks may not be populated simultaneously. |
||
