Card Type	Video
Video Chip Set	Trident
Maximum Video Memory	512KB DRAM
Data Bus	16-bit ISA
Video Types Supported	XVGA
Highest Resolution Supported	1024 x 768

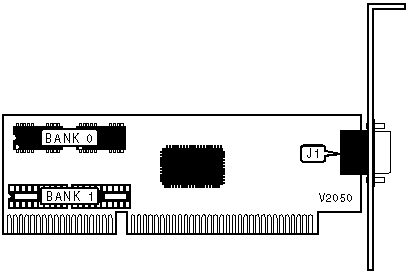

CONNECTIONS
Function	Label
VGA port - 15-pin	J1

DRAM
Size	Bank 0	Bank 1
256KB	(2) 256KB x 4	NONE
512KB	(2) 256KB x 4	(2) 256KB x 4
