Card Type

Video

Video Chip Set

S3 Trio64V+

Maximum Video Memory

4MB EDO DRAM

I/O Options

VESA feature connector, Local Peripheral Bus

Data Bus

32-bit PCI

Video Types Supported

XVGA

Highest Resolution Supported

1600 x 1200

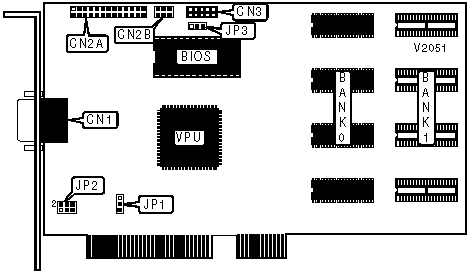

CONNECTIONS

Function

Label

Function

Label

VGA port - 15-pin

CN1

LPB extension to VESA connector

CN2B

VESA feature connector

CN2A

Unidentified

CN3

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Board does not use IRQ2/9

JP1

Pins 2 & 3 closed

Board uses IR/FONT

JP1

Pins 1 & 2 closed

»

VGA BIOS enabled

JP3

Pins 2 & 3 closed

VGA BIOS disabled

JP3

Pins 1 & 2 closed

DRAM

Size

Bank 0

Bank 1

2MB

(4) 256K x 16

NONE

4MB

(4) 256K x 16

(4) 256K x 16

DDC (PLUG-AND-PLAY)

Setting

JP2

»

Enabled

Pins 1 & 3, 2 & 4 closed

Disabled

Pins 3 & 5, 4 & 6 closed
