Card Type	Video
Video Chip Set	Unidentified
Video Types Supported	XVGA
Maximum Onboard Memory	512KB DRAM
Data Bus	16-bit ISA
Highest Resolution Supported	1024 x 768

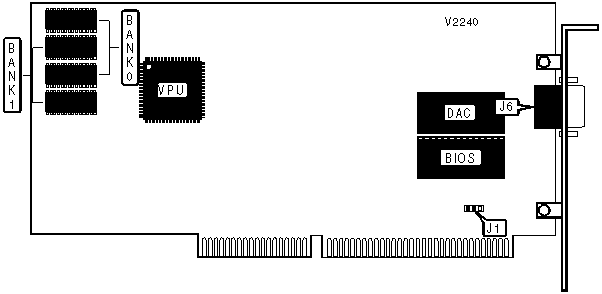

CONNECTIONS
Function	Label
15-pin analog video port	J5

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Card does not use IRQ	J1	Pins 2 & 3 closed
	Card uses IR/FONT>	J1	Pins 1 & 2 closed

DRAM
Size	Bank 0	Bank 1
256KB	(2) 256K x 4	NONE
512KB	(2) 256K x 4	(2) 256K x 4
