Card Type	Parallel, video card
Chipset	Unidentified
I/O Options	Parallel port
Data Bus	8-bit ISA
Video Types Supported	Monochrome
Highest Resolution Supported	720 x 348

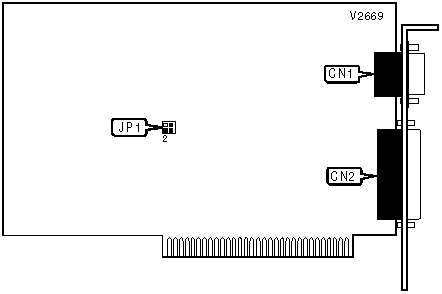

CONNECTIONS
Function	Label	Function	Label
9-pin monochrome video	CN1	Parallel port	CN2

PARALLEL PORT ADDRESS SELECTION
Setting	JP1
3BCh	Pins 3 & 4 closed
378h	Pins 1 & 2, 3 & 4 closed
Disabled	Pins 1 & 3 closed
