TANDY / RADIO SHACK CORPORATION
16-BIT SVGA GRAPHICS ADAPTER (250-4056)
|
Card Type |
Video card |
|
Video Processor |
Unidentified |
|
Maximum Onboard Memory |
512KB DRAM |
|
Data Bus |
16-bit ISA |
|
Video Types Supported |
XVGA |
|
Highest Resolution Supported |
1024 x 768 |
|

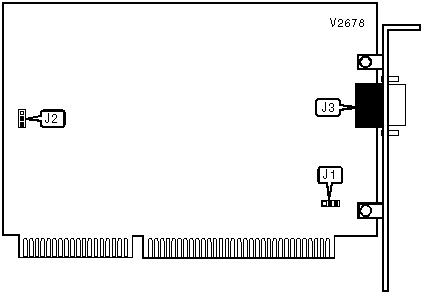

CONNECTIONS |
|
|
Function |
Label |
|
15-pin VGA port |
J3 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Setting |
Label |
Position |
|
|
» |
IRdisabled |
J1 |
Pins 2 & 3 closed |
|
|
IRenabled |
J1 |
Pins 1 & 2 closed |
|
» |
Card will use 16-bit BIOS transfers |
J2 |
Pins 1 & 2 closed |
|
|
Card will use 8-bit BIOS transfers |
J2 |
Pins 2 & 3 closed |
