SPEA
V7 VEGA 8-BIT VGA
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Highest Resolution Supported |
800 x 600 |
|
Maximum Video Memory |
256KB RAM (Location unidentified) |
|
Data Bus |
8-bit ISA |
|
Video Types Supported |
VGA |
|

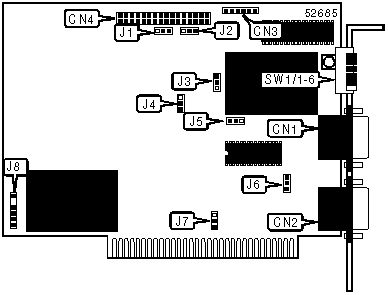

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
9-pin digital video port |
CN1 |
Light Pen |
CN3 |
|
15-pin digital video port |
CN2 |
VGA feature connector |
CN4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Factory configured - do not alter |
SW1/4 |
Off |
| » |
Factory configured - do not alter |
SW1/5 |
Off |
| » |
Factory configured - do not alter |
SW1/6 |
Off |
| » |
Factory configured - do not alter |
J1 |
Unidentified |
| » |
Factory configured - do not alter |
J2 |
Unidentified |
| » |
Factory configured - do not alter |
J3 |
Unidentified |
| » |
Factory configured - do not alter |
J4 |
Unidentified |
| » |
Factory configured - do not alter |
J5 |
Unidentified |
| » |
Factory configured - do not alter |
J6 |
Unidentified |
| » |
Factory configured - do not alter |
J7 |
Unidentified |
| » |
Factory configured - do not alter |
J8 |
Unidentified |
|
DISPLAY CONFIGURATION | ||||
|
Primary Display |
SW1/1 |
SW1/2 |
SW1/3 | |
| » |
Auto-detect and IBM Analog PS/2 displays |
Off |
Off |
Off |
|
NEC Multisync or equivalent |
On |
Off |
Off | |
|
Sony Multisync or equivalent |
Off |
On |
Off | |
|
NEC Multisync Plus or equivalent |
On |
On |
Off | |
|
IBM Analog PS/2 displays |
Off |
Off |
On | |
|
IBM color displays |
On |
Off |
On | |
|
IBM enhanced color displays |
Off |
On |
On | |
|
IBM monochrome display |
On |
On |
On | |
