Card Type	Video
Chip Set	Cirrus Logic, Inc.
Maximum Onboard Memory	2MB RAM
Data Bus	32-bit VESA Local Bus
Video Types Supported	XVGA
Highest Resolution Supported	1280 x 1024

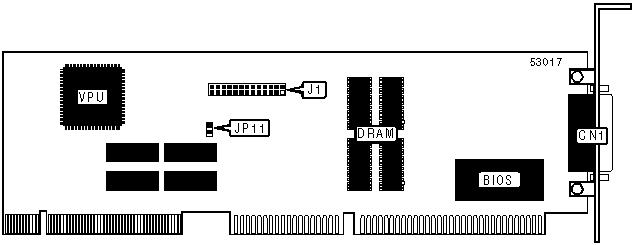

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Feature connector	J1

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	IRQ9 disabled	JP11	Open
	IRQ9 enabled	JP11	Closed
