Card Type	Video card
Video Chip Set	SIIG, INC.
Maximum Video Memory	1MB DRAM
Video Types Supported	XVGA
Highest Resolution Supported	Unidentified
Data Bus	8-bit ISA/16-bit ISA

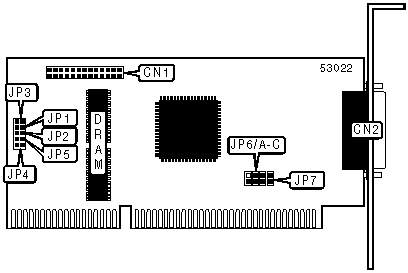

CONNECTIONS
Function	Label	Function	Label
Feature connector	CN1	15-pin analog video connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Non-interlaced display, scan rate up to 48.7KHz	JP1	Closed
	Interlaced display	JP1	Open

ZERO-WAIT STATE SELECTION
Setting		JP3	JP7
»	Enabled	Closed	Closed
	Disabled	Open	Open

BUS SIZE SELECTION
Setting		JP2
»	Autodetect - enabled	Closed
	Autodetect - disabled	Open

SLOT SELECTION
Size		JP4	JP5	JP6/A	JP6/B	JP6/C
»	Configured for 16-bit slot	Closed	Open	Open	Open	Open
	Configured for 8-bit slot	Open	Open	Open	Open	Open
