Card Type	Display adapter
Video Chip Set	S3, Inc.
Maximum Video Memory	4MB EDO DRAM per port
Video Types Supported	VGA, XVGA
Highest Resolution Supported	1600 x 1200
I/O Options	VGA feature connector (4), VGA port (2)
Data Bus	32-bit PCI

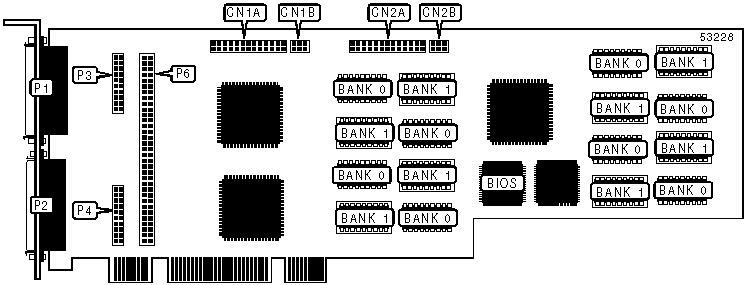

CONNECTIONS
Function	Label	Function	Label
Vesa feature connector	CN1A	26-pin HD video port	P2
LPB extension to Vesa connector	CN1B	20-pin header connector	P3
Vesa feature connector	CN2A	20-pin header connector	P4
LPB extension to Vesa connector	CN2B	100-pin header connector	P6
26-pin HD video port	P1

DRAM CONFIGURATION
Size	Bank 0	Bank 1
2MB	(4) 512KB	None
4MB	(4) 512KB	(4) 512KB
Note:MVP 3D will hold up to 4MB of DRAM per port, however locations of individual banks is unidentified.

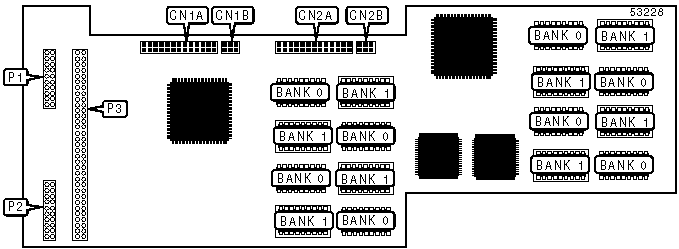

CONNECTIONS
Function	Label	Function	Label
Vesa feature connector	CN1A	20-pin header connector	P1
LPB extension to Vesa connector	CN1B	20-pin header connector	P2
Feature connector	CN2A	100-pin header connector	P3
LPB extension to Vesa connector	CN2B
Note: P1, P2 & P3 are mounted on the underside of the daughter board.

DRAM CONFIGURATION
Size	Bank 0	Bank 1
2MB	(4) 512KB	None
4MB	(4) 512KB	(4) 512KB
Note: MVP 3D Daughter Board will hold up to 4MB of DRAM per port, however locations of individual banks is unidentified.
