TATUNG SCIENCE & TECHNOLOGY, INC.
SUPREME EGA
|
Card Type |
Video card |
|
Video Chip Set |
ATI |
|
Maximum Video Memory |
256KB |
|
Video Types Supported |
Monochrome, CGA, EGA |
|
Highest Resolution Supported |
720 x 348 |
|
Data Bus |
8-bit ISA |
|

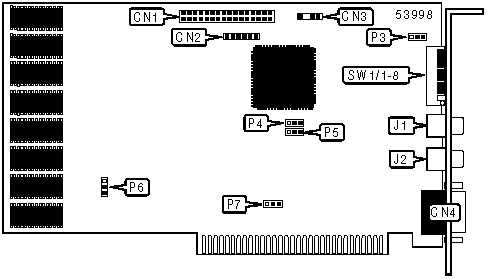

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Feature connector |
CN1 |
9-pin digital video port |
CN4 |
|
Light pen port |
CN2 |
Composite video connector |
J1 |
|
RF modulator port |
CN3 |
Composite video connector |
J2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Composite signal to J1 enabled |
P3 |
Pins 2 & 3 closed |
|
Composite signal to J1 disabled |
P3 |
Pins 1 & 2 closed | |
| » |
Factory configured - do not alter |
P4 |
Unidentified |
| » |
Factory configured - do not alter |
P5 |
Unidentified |
|
EPHROM 27256 installed |
P6 |
Pins 1 & 2 closed | |
|
EPHROM 27128 installed |
P6 |
Pins 2 & 3 closed | |
| » |
Port addresses set to 3XX |
P7 |
Pins 1& 2 closed |
|
Port addresses set to 2XX |
P7 |
Pins 2 & 3 closed | |
|
MONITER CONFIGURATION SELECTION | |||||||||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 | |
| » |
Enhanced graphics |
Off |
On |
On |
Off |
On |
Off |
Off |
On |
|
RGB color |
On |
On |
On |
Off |
On |
On |
Off |
On | |
|
TTL monochrome |
Off |
On |
On |
Off |
Off |
On |
Off |
On | |
|
Composite (PC portable) |
On |
On |
On |
Off |
On |
On |
Off |
On | |
|
Compaq internal monitor |
Off |
On |
On |
Off |
Off |
Off |
Off |
On | |
