STONE MICROSYSTEMS (AUSTRALIA) LIMITED
MULTIVIDEO-MONO
|
Card Type |
Multi-video card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
Unidentified |
|
I/O Options |
Daisy chain connector, video modules (3), 78-pin cable connector |
|
Video Types Supported |
Monochrome |
|
Highest Resolution Supported |
Unidentified |
|
Data Bus |
16-bit ISA |
|

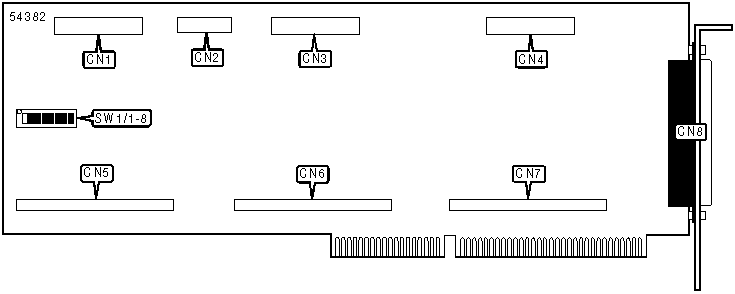

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Header connector to video module |
CN1 |
Header connector to video module |
CN5 |
|
Daisy chain connector |
CN2 |
Header connector to video module |
CN6 |
|
Header connector to video module |
CN3 |
Header connector to video module |
CN7 |
|
Header connector to video module |
CN4 |
78-pin cable connector |
CN8 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
First board in system |
SW1/5 |
On |
|
Second board in system |
SW1/5 |
Off | |
| » |
VGA card not installed |
SW1/6 |
On |
|
VGA card installed |
SW1/6 |
Off | |
| » |
ALT I/O address at 1F8 |
SW1/7 |
On |
|
ALT I/O address at 2F8 |
SW1/7 |
Off | |
| » |
Factory configured - do not alter |
SW1/8 |
On |
|
Note: To avoid conflict with standard parallel and serial ports, SW1/7 should be left in the on position | |||
|
