Card Type	Video display card
Video Chip Set	Unidentified
Maximum Video Memory	Unidentified
Video Types Supported	Monochrome, CGA
Highest Resolution Supported	720 x 348
Data Bus	8-bit ISA

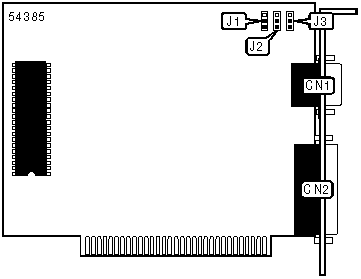

CONNECTIONS
Function	Label	Function	Label
9-pin analog video port	CN1	25-pin parallel port	CN2

USER CONFIGURABLE SETTINGS
Function	Label	Position
Color and monochrome cards in system	J3	Pins 1 & 2 closed
Monochrome only	J3	Pins 2 & 3 closed

PARALLEL PORT ADDRESS SELECTION
Setting	J1	J2
LPT1 (378h)	Pins 1 & 2 closed	Pins 1 & 2 closed
LPT2 (278h)	Pins 2 & 3 closed	Pins 2 & 3 closed
