SIGMA DESIGNS, INC.
SIGMA 8-BIT VIDEO CARD
|
Card Type |
Video Card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
256KB DRAM |
|
Video Types Supported |
Monochrome, CGA, EGA |
|
Highest Resolution Supported |
80 x 25 |
|
Data Bus |
8-bit ISA |
|

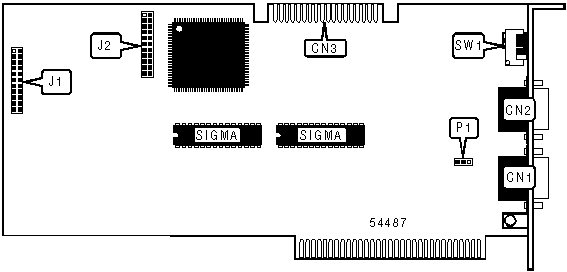

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
9-pin digital video port |
CN1 |
Unidentified |
J1 |
|
15-pin analog video port |
CN2 |
Unidentified |
J2 |
|
Feature connector |
CN3 | ||
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
Analog or Enhanced Monitor |
P1 |
Pins 1 & 2 closed |
|
Color or Monochrome Monitor |
P1 |
Pins 2 & 3 closed |
|
DISPLAY CONFIGURATION | ||||
|
Function |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
PS/2 analog |
On |
On |
Off |
Off |
|
Analog MultiSync |
On |
Off |
Off |
Off |
|
Monochrome |
Off |
Off |
On |
Off |
|
Color 80 x 25 |
Off |
Off |
Off |
On |
|
Color 40 x 25 |
On |
Off |
Off |
On |
|
EGA/Digital MultiSync (Normal mode) |
On |
On |
On |
Off |
|
EGA/Digital MultiSync (Enhanced mode) |
Off |
On |
On |
Off |
