WESTERN DIGITAL CORPORATION
PARADISE ACCELERATOR
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
WD90C31 |
|
Highest Resolution Supported |
1280 X 1024 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
1024KB |
|

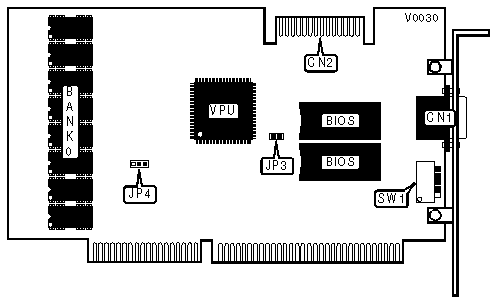

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
Feature connector |
CN2 |
|
ZERO WAIT STATE SELECTION | ||
|
Setting |
JP3 | |
| » |
Enabled |
Closed |
|
Disabled |
Open | |
|
ADDRESS LATCH CONFIGURATION | ||
|
Setting |
JP4 | |
| » |
Address latch line tied to VCC enabled |
Pins 1 & 2 closed |
|
Address latch line to bus enabled |
Pins 2 & 3 closed | |
|
800 X 600 REFRESH RATE SELECTION | ||
|
Rate |
SW1/1 |
SW1/2 |
|
56.5Hz |
Off |
Off |
|
72.1Hz |
On |
Off |
|
60.5Hz |
Off |
On |
|
56.5Hz |
On |
On |
|
1024 X 768 REFRESH RATE CONFIGURATION | |||
|
Rate |
Mode |
SW1/1 |
SW1/2 |
|
86.7Hz |
Interlaced |
Off |
Off |
|
70.2Hz |
Non-Interlaced |
On |
Off |
|
60.2Hz |
Non-Interlaced |
Off |
On |
|
72.3HZ |
Non-Interlaced |
On |
On |
|
FONT SELECTION | ||
|
Setting |
SW1/5 | |
| » |
Standard fonts |
Off |
|
TUV fonts |
On | |
|
Note: TUV is the German standard for character spacing, and may not be compatible with some DOS applications. | ||
