Category	Video
Video Types Supported	EGA/Monochrome
Video Processor	WD PEGA1A
Highest Resolution Supported	800 x 600
Data Bus Type	8-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	256KB

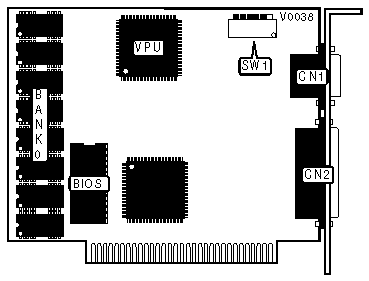

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	25-pin parallel port	CN2

AUTOSWITCH CONFIGURATION
Setting		SW1/1
»	Enabled	On
	Disabled	Off

START UP CONFIGURATION
Setting	SW1/2
Color simulation mode	On
True monochrome	Off

DUAL MONITOR CONFIGURATION
Display	Autoswitch card	SW1/1	SW1/2	SW1/3
IBM monochrome display adapter	Color simulation as primary display	Off	On	On
IBM monochrome display adapter	Color simulation as secondary display	Off	Off	On
IBM color/graphics adapter	True monochrome as primary display	Off	On	Off
IBM color/graphics adapter	True monochrome as secondary display	Off	Off	Off

PARALLEL PORT CONFIGURATION
LPT		SW1/5	SW1/6
»	1	Off	On
	2	On	Off
	3	On	On
	Disabled	Off	Off

FACTORY CONFIGURED - DO NOT ALTER
Switch	Position
SW1/4	N/A
