Category	Video
Video Types Supported	CGA/EGA/Monochrome/VGA
Video Processor	OTI-037
Highest Resolution Supported	800 X 600
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	256KB

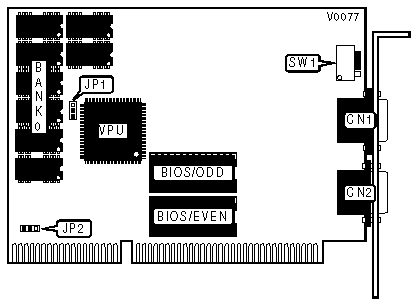

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	9-pin TTL video port	CN2

VIDEO INTERRUPT SELECTION
IRQ 2/9		JP1
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

BUS SELECTION
Bus		JP2
»	16-bit	Pins 2 & 3 closed
	8-bit	Pins 1 & 2 closed

MONITOR TYPE SELECTION
Type	SW1/1	SW1/2	SW1/3	SW1/4
MDA	On	On	On	Off
CGA	Off	On	On	Off
EGA	On	Off	On	Off
NEC Multisync or compatible	On	Off	On	Off
NEC Multisync Plus or compatible	On	On	Off	Off
NEC Multisync 2A	Off	On	Off	Off
NEC XL	On	Off	Off	Off
NEC 4D or 5D	On	Off	Off	On
Reserved	Off	Off	Off	Off
VGA monitor (mono)	Off	On	On	On
VGA monitor (color)	On	Off	On	On
VGA 16" monitor (color)	Off	Off	On	On
Reserved	N/A	N/A	Off	On
