Category	Video
Video Types Supported	XVGA
Video Processor	Unidentified
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	512KB

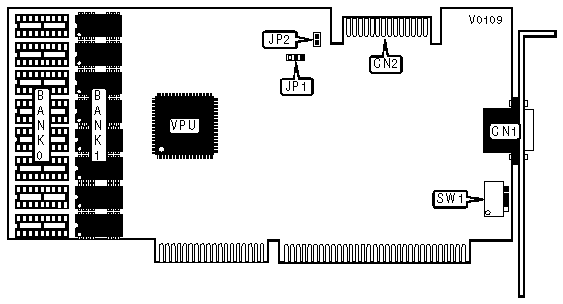

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA feature connector	CN2

FACTORY CONFIGURED - DO NOT ALTER
Switch	Setting
SW1/3	Off

GRAPHICS MODE CONFIGURATION
Setting		JP1
»	Extended graphics mode enabled	Pins 1 & 2 closed
	Extended graphics mode disabled	Pins 2 & 3 closed

MANUAL 16-BIT BIOS CONFIGURATION
Setting		JP2
»	Initial setup and normal operation	Closed
Note: JP2 should remain in the closed position unless the 16TEST program has been run and it recommendsremoving the jumper.

TIMING SELECTION
Timing		SW1/1
»	Standard VGA timing	Off
	Special timing for multi-frequency monitors	On

VGA MODE SELECTION
Mode		SW1/2
»	PS/2 style	On
	PC/AT style	Off

BUS WIDTH AUTODETECT CONFIGURATION
Setting		SW1/4
»	Enabled	On
	Disabled	Off

DRAM CONFIGURATION
Size	Bank 0	Bank 1
256KB	(8) 41256	None
512KB	(8) 41256	(8) 41256
