Category	Video
Video Types Supported	Monochrome
Video Processor	Unidentified
Highest Resolution Supported	640 X 200
Data Bus Type	8 Bit ISA
Memory Type	DRAM
Maximum Onboard Memory	64KB

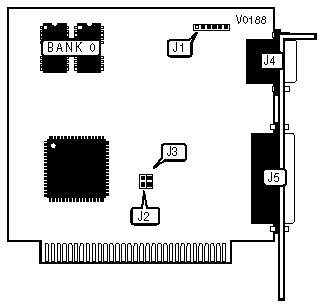

CONNECTIONS
Purpose	Location	Purpose	Location
Light pen connector	J1	Parallel port	J5
15-pin analog video port	J4

PARALLEL PORT CONFIGURATION
Setting		J2
»	Enabled	Open
	Disabled	Closed

CHARACTER FONT CONFIGURATION
Setting	J3
Enable built-in character font	Open
Enable external character font	Closed
