Category	Graphics/printer card
Video Types Supported	Monochrome
Video Processor	N/A
Highest Resolution Supported	640 x 200
Data Bus Type	8-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	64KB (Exact location of memory is unidentified)

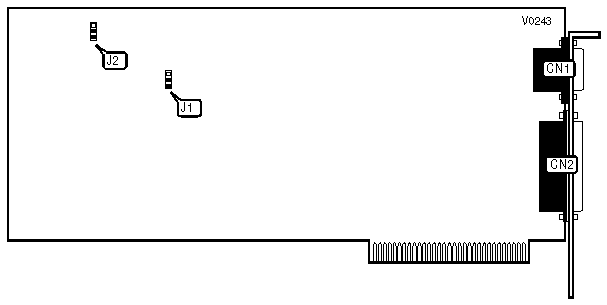

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	Parallel port	CN2

PARALLEL PORT CONFIGURATION
Port		J2
»	Enabled	Pins 1 & 2 closed
	Disabled	Pins 2 & 3 closed

HERCULES DISPLAY MODE SELECTION
Mode	J1
Hercules V1	Pins 1 & 2 closed
Hercules V2	Pins 2 & 3 closed
