Category	Video
Video Type	XVGA
Video Processor	Unidentified
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	1MB

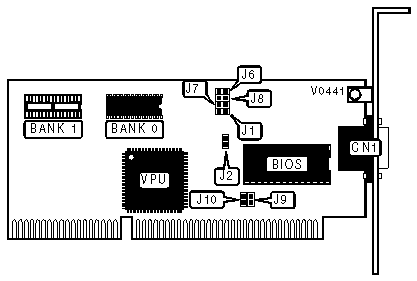

CONNECTIONS
Purpose	Location
15-pin analog video port	CN1

ZERO WAIT STATE
Setting		J1	J2
»	1st 0 wait state enabled/2nd 0 wait state enabled	Open	Closed
	1st 0 wait state disabled/2nd 0 wait state enabled	Closed	Closed
	1st 0 wait state disabled/2nd 0 wait state disabled	Open	Open

BUS SLOT SELECTION
Setting	J6	J9	J10
8-bit ISA	Closed	Closed	Open
16-bit ISA	Open	Open	Closed

SCAN RATE SELECTION
Setting	J7
Default rate	Closed
48.7KHz	Open

BIOS AUTODETECT
Setting		J8
»	Enabled	Open
	Disabled	Closed

VIDEO MEMORY CONFIGURATION
Size		Bank 0	Bank 1
»	512KB	512K x 8	NONE
	1MB	512K x 8	512K x 8
