Category	Video
Video Types Supported	MDA
Video Processor	Unidentified
Highest Resolution Supported	720 x 348
Data Bus Type	8-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	64KB

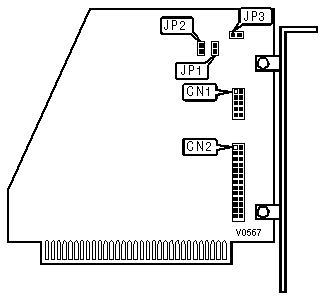

CONNECTIONS
Purpose	Location	Purpose	Location
10-pin digital video port	CN1	26-pin parallel printer port	CN2

PARALLEL PORT SELECT
Setting	JP1	JP2
LPT1	Open	Open
LPT2	Closed	Open
LPT3	Open	Closed
Disabled	Closed	Closed

CHIP SELECT
Setting	JP3
Enable	Open
Disable	Closed
