Category	Video
Video Types Supported	CGA
Video Processor	Unidentified
Highest Resolution Supported	800 x 600
Data Bus Type	8-bit ISA
Memory Type	Unidentified
Maximum Onboard Memory	Unidentified

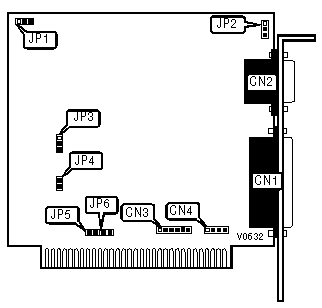

CONNECTIONS
Purpose	Location	Purpose	Location
9-pin digital video connector	CN1	Light pen connector	CN3
25--pin parallel port external	CN2	External RF modulator connector	CN4

DISPLAY FONT SELECT
Setting		JP1
»	Thick type (Standard) font	Pins 1 & 2 closed
	Thin type font	Pins 2 & 3 closed

DISPLAY TYPE CONFIGURATION
Setting		JP2
»	Color enabled	Pins 1 & 2 closed
	Mono enabled	Pins 2 & 3 closed
	Dual frequency or EGA type monitor	All open

PARALLEL PORT SELECT
Port	JP3
LPT1	Pins 1 & 2 closed
LPT2	Pins 2 & 3 closed

PARALLEL PORT ENABLE SELECT
Setting	JP4
Parallel port enable	Closed
Parallel port disable	Open

INTERRUPT SELECT
Setting	JP5	JP6
IRQ5	Closed	Open
IRQ7	Open	Closed
