Category	Video
Video Types Supported	XVGA
Video Processor	NCR
Highest Resolution Supported	1280 x 1024
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	2MB

CONNECTIONS

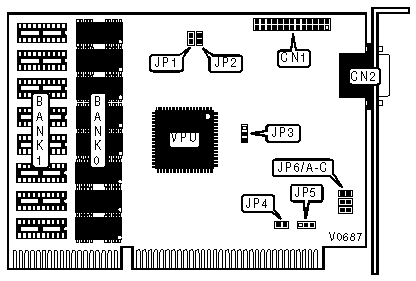

Purpose	Location	Purpose	Location
VESA Feature connector	CN1	15-pin analog video port	CN2

CLOCK SPEED
Setting	JP1	JP2
» 50MHz	Closed	Closed
60MHz	Closed	Open
65MHz	Open	Closed
75MHz	Open	Open

MONITOR TYPE
Setting	JP3
Monochrome	Pins 1 & 2 closed
Color	Pins 2 & 3 closed

ZERO WAIT STATE
Setting	JP4
Enabled	Closed
Disabled	Open

INTERRUPT SELECT
IRQ	JP5
» Disabled	All pins open
IRQ3	Pins 1 & 2 closed
IRQ9	Pins 2 & 3 closed

8/16-BIT I/O SELECT
Setting	JP6/Jumper A
» 8-bit I/O	Closed
16-bit I/O	Open

8/16-BIT MEMORY SELECT
Setting	JP6/Jumper B
» 8-bit memory	Closed
16-bit memory	Open

RAS CYCLE SELECT
Setting	JP6/Jumper C
» 4 clock RAS	Open
3-clock RAS	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
» 1MB	(8) 256K x 4	None
2MB	(8) 256K x 4	(8) 256K x 4
