UNIDENTIFIED
PAELIT VGA/1024 (16-BIT VERSION)
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Trident Microsystems, Inc. |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
512KB |
|

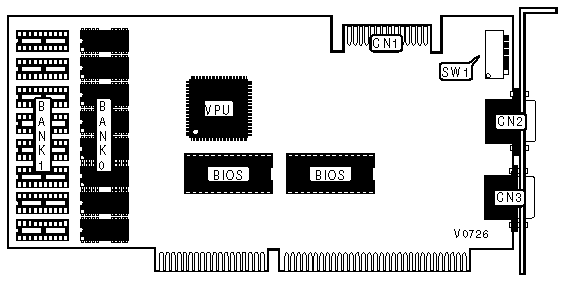

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
VESA Feature connector |
CN1 |
9-pin digital video port |
CN3 |
|
15-pin analog video port |
CN2 | ||
|
MONITOR TYPE | ||||||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
PS/2, Multisync monitors |
On |
On |
On |
On |
On |
On |
|
TTL monitors |
Off |
On |
On |
On |
On |
On |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
» 256KB |
(8) 256K x 1 |
None |
|
512KB |
(8) 256K x 1 |
(8) 256K x 1 |
