Category

Video

Video Types Supported

XVGA

Video Processor

Trident Microsystems, Inc.

Highest Resolution Supported

1280 x 1024

Data Bus Type

VESA local-bus

Memory Type

DRAM

Maximum Onboard Memory

2MB

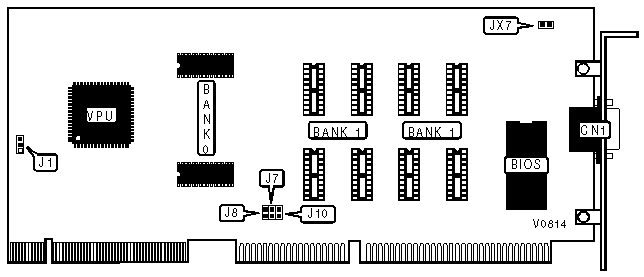

CONNECTIONS

Purpose

Location

15-pin analog video port

CN1

VL-BUS TIMING

Setting

J1

»

Standard

Pins 2 & 3 closed

Alternate

Pins 1 & 2 closed

VERTICAL SCAN RATE

Setting

J7

»

Monitor scan rate < 48.7KHz

Closed

Monitor scan rate £ 48.7MHz

Open

DRAM SPEED

DRAM Speed

J8

»

80ns

Closed

60ns or 70ns

Open

DRAM CLOCK

Setting

J10

»

Standard

Closed

Enhanced

Open

VL-BUS SPEED

Setting

JX7

CPU speed £ 33MHz

Open

CPU speed > 33MHz

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

»

1MB

(2) 512K x 8

None

2MB

(2) 512K x 8

(8) 256K x 4
