Category

Video

Video Types Supported

XVGA

Video Processor

Tseng Laboratories, Inc.

Highest Resolution Supported

1024 x 768

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

1MB

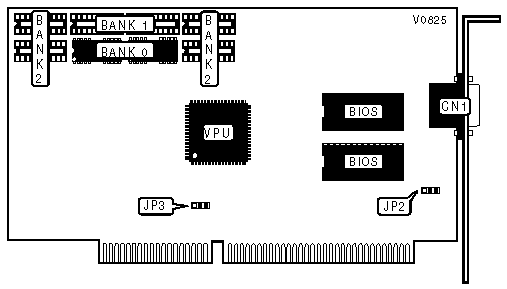

CONNECTIONS

Purpose

Location

15-pin analog video port

CN1

IRQ2

Setting

JP2

»

Disabled

Pins 2 & 3 closed

Enabled

Pins 1 & 2 closed

TURBO MODE

Setting

JP3

»

Enabled

Pins 2 & 3 closed

Disabled

All pins open

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

»

256KB

(2) 256K x 4

None

None

512KB

(2) 256K x 4

(2) 256K x 4

None

1MB

(2) 256K x 4

(2) 256K x 4

(4) 256K x 4
